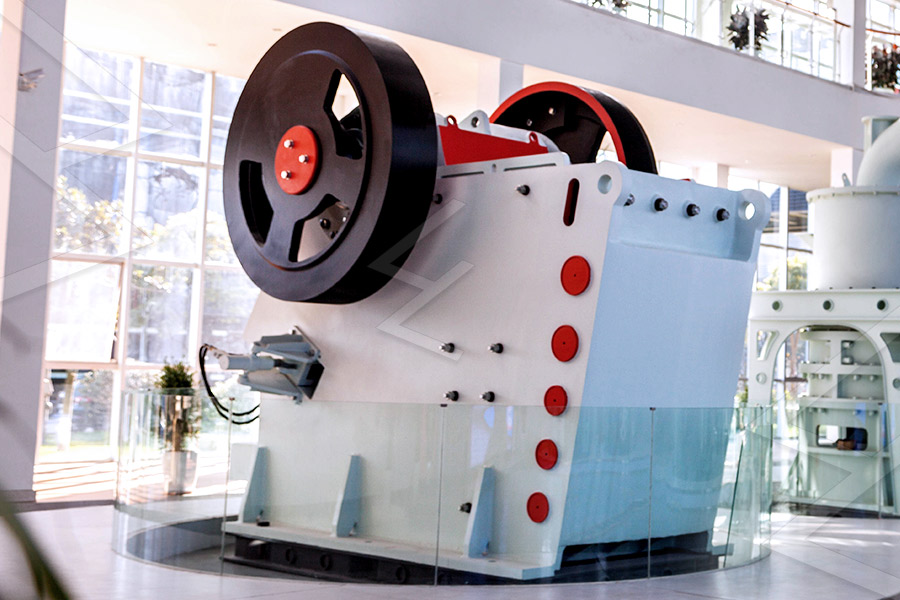

Trituradora De Mandíbulas De Tipo Europeo
Basándose en las ventajas de excelente calidad, gran producción y larga vida útil, esta máquina puede ser ampliamente utilizada en maquinaria minera, carreteras, metalurgia de la construcción, etc.
Principio de funcionamiento
The crushing method of European type jaw crusher is dynamic squeeze. The working principle is: the electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or split when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

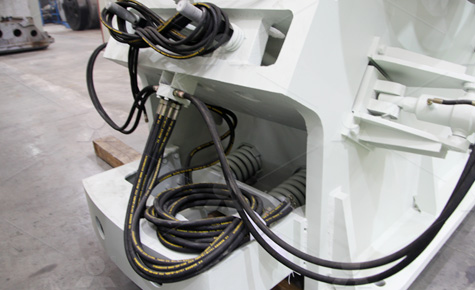

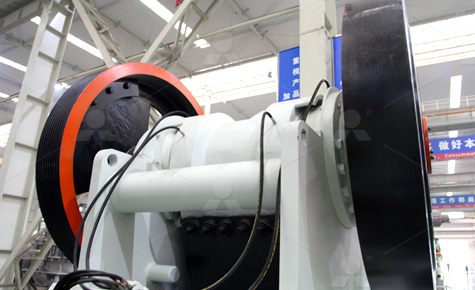

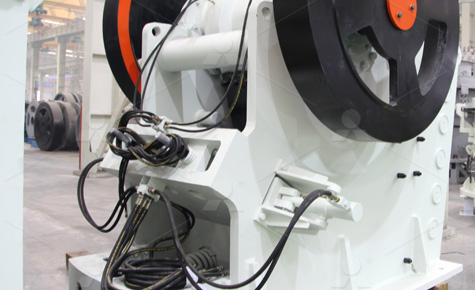

Detalles de la trituradora de mandíbulas de tipo europeo
Especificaciones - Datos técnicos
| Model | Feed opening (mm) |
Maximum feed size(mm) |
CSS min-max (mm) |
Capacity (tph) |
Power KW(HP) |
Dimension (L×W×H) (mm) |
Weight (t) |
| PEW200×1300 | 200X1300 | 150 | 10-30 | 12-35 | 30(40) | 1320X2150X1176 | 6 |
| PEW250×1000 | 250X1000 | 220 | 20-40 | 15-50 | 30(40) | 1400X1850X1310 | 6 |
| PEW250×1200 | 250X1200 | 220 | 20-40 | 20-50 | 37(50) | 1450X2150X1175 | 7 |
| PEW400×600 | 400X600 | 350 | 35-85 | 15-70 | 37(50) | 1920X1460X1840 | 7.5 |
| PEW760 | 760X1100 | 620 | 75-200 | 150-350 | 110(150) | 2950X2360X2760 | 24 |
| PEW860 | 840X1100 | 720 | 100-225 | 200-500 | 132(175) | 3300X2320X3120 | 32 |
| PEW1100 | 1100X1200 | 940 | 150-275 | 300-650 | 185(250) | 4140X2660X3560 | 59.2 |
